Linear bearing 20mm SBR20UU, open

Linear bearing 20mm SBR20UU, open

Art. No.: 1022 On Sale (Limited Stock)
4,26€ Excl. VAT
1 × 4,26€/pcs.
5,28€ incl. 24% VAT
Save 10% by joining the Efficiency Club
Pack size
Quantity (number of packs)
= 1 pcs. total
Delivered by xx–xx.yy. Not enough stock available right now
🇩🇪 Ships locally
Products description

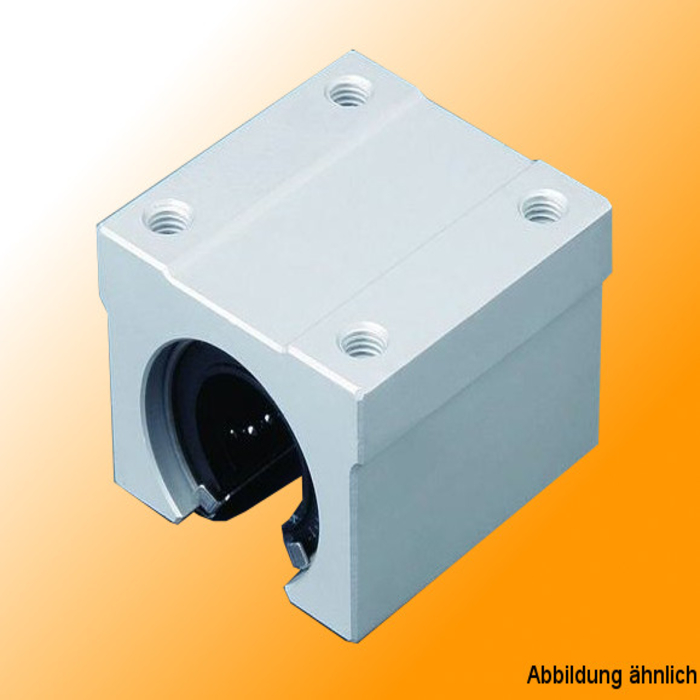

Linear bearings with aluminum housing for 20mm Supported Rails.
This bearing can be combined with both SBS and TBS Supported Rails.

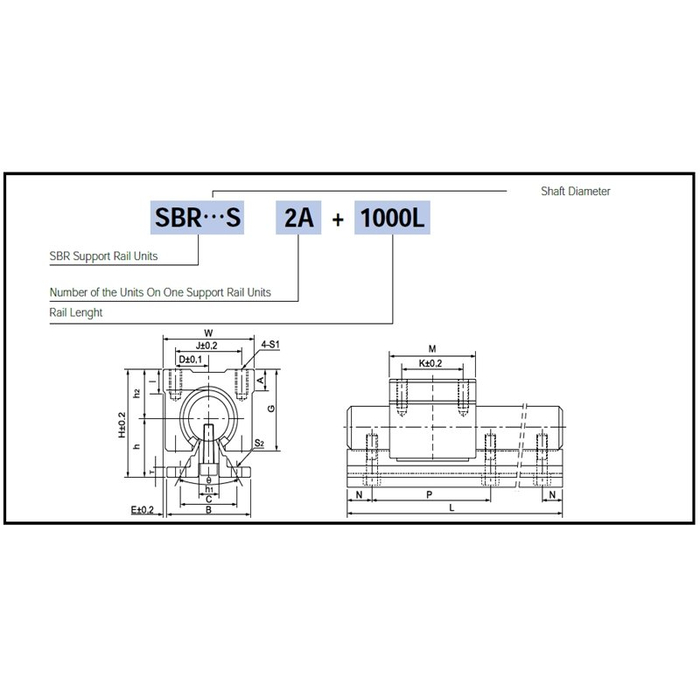

Specifications:
Shaft Diameter: 20mm
Length: 50mm (M)
Width: 48mm (W)
Height: 39mm (G)
Distance from the center shaft - mounting surface of the bearing: 23mm (h2)
Thread: M6 x 12 (W x I)
Thread distance: 35 x 35 mm (J x K)
Bearing Type: LM20UUOP
Number of rows of balls: 4
Opening angle of the bearing: 60 ° (angle theta)
Opening width of the bearing: 10mm (h1)
The bearings are sealed beideitig.

remark:
Total height, combined with Supported Rail TBS20: 23mm (h2) + 29mm (h) = 42mm (H)
