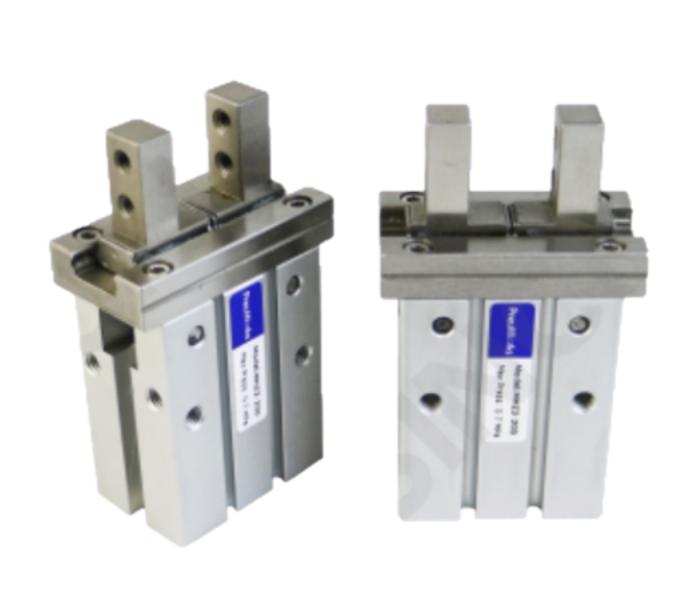

Parallel Style air gripper D16 double acting, gripping range 14,9-20,9mm
Parallel Style air gripper D16 double acting, gripping range 14,9-20,9mm
Parallel Style air gripper D16 double acting, gripping range 14,9-20,9mm
Paralell Style air gripper can work without lubrication

Parallel Style air gripper D16 double acting, gripping range 14,9-20,9mm

Product no.: D16PARAIRGRI
On Sale (Best Seller)

w/o taxes: 9,02 €
w/ taxes: 11,19 €

This is our most expensive picking type. Someone has to open a bag, count your items and put the bag back in the warehouse. For this procedure we invoice 0,00 € per position.
Shipping time: 3-6 business days Ex Works
Estimated stock:
This is a quantity that is available in our current supply chain. The shipping time give us the possibility to mouve the product to the right place at low cost.
Shipping time: 3-6 business days Ex Works
Products description

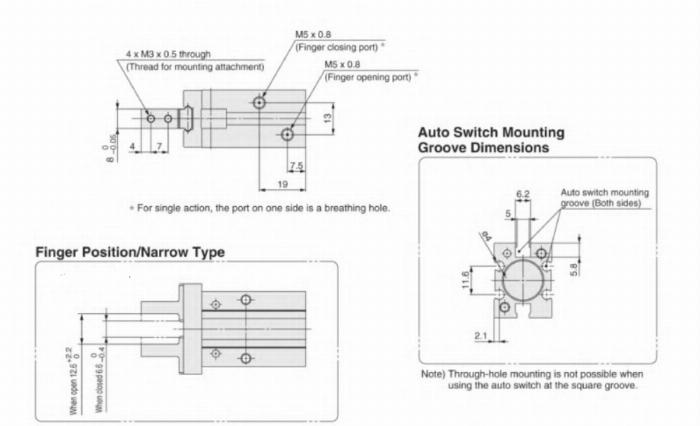

Pneumatic connection: M5x0.8
Distance between the two gripper fingers:
- Open: 14.9mm
- Closed: 20.9mm
Ambient and liquid temperature: -10 to 60°C
Operating medium: compressed air, filtered using a 40μm filter element (ISO 8573)
Repeatability: /- 0.1 mm
Max. operating frequency: 180 cpm
Operating pressure: 0.1 to 0.7 MPa
Lubrication: Not required
How it works: double-acting
Clamp attachment: 2xM3/clamp
Housing mounting: 4xM4 (threaded hole suitable for screw M3)
Internal diameter of the piston 16 mm
