Supported Rail SBS20, 1000mm

Supported Rail SBS20, 1000mm

Art. No.: SBS20-1000 None
31,52€ Excl. VAT
1 × 31,52€/pcs.
39,08€ incl. 24% VAT
Save 10% by joining the Efficiency Club
Pack size
Quantity (number of packs)
= 1 pcs. total
Delivered by xx–xx.yy. Not enough stock available right now
🇩🇪 Ships locally
Products description
Supported Rail with a shaft diameter of 20mm in the execution of SBS.

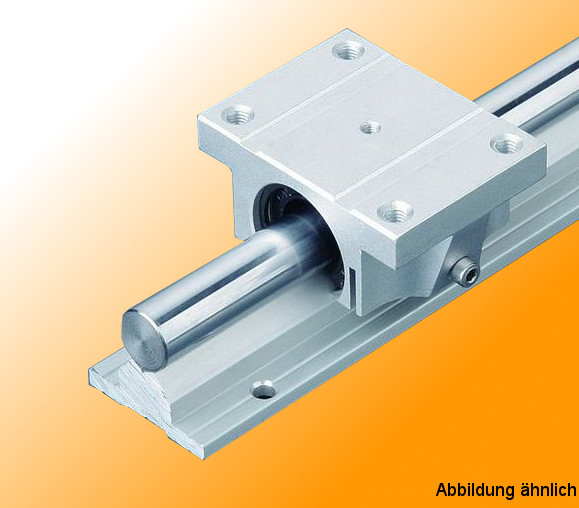

(This pictured bearing is not included and must be ordered separately!)

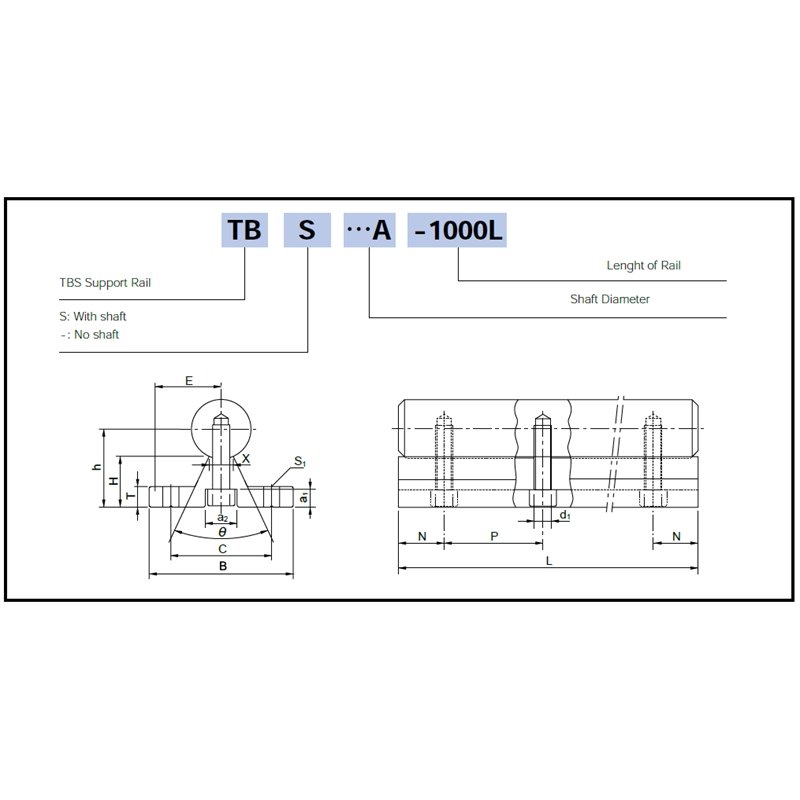

Specifications:
Shaft Diameter: 20mm
Length: 1000mm (L)
Width of the base: 45mm (W)
Distance of mounting holes: 30mm (C)
Distance from mounting surface-wave center: 27mm (h)
Thickness of the base: 5mm (D)
Spacing of the mounting holes: 150mm (P)

Mounting holes: 5,5mm

Weight: 3.5 kg / m

Material of the base: anodized aluminum.

Material of shafts: GCr15 high carbon chromium steel
Hardness: HRC62 + / -2
Roughness: Ra0.8
Straightness better 50μm/300mm
Tolerance g6
